পণ্যের বিবরণ:
|
পণ্যের নাম: | Aqua Duplex LC Fiber Optic Loopback OM3-300 Multimode 50/125um | LC type: | duplex |
---|---|---|---|
Connector: | LC PC | fiber type: | 50/125um |
insertion loss: | ≤ 0.25-0.3dB | রঙ: | Aqua color |
প্রয়োগ: | FTTH FTTB FTTX Network,Network,Telecommunication/Fiber Optic CATV/Multimedia | অপারেটিং তাপমাত্রা: | -40 to +85 degree |
Housing material: | ত্রুটিমুক্ত | housing color: | কালো |
লক্ষণীয় করা: | multimode fiber optic cable,fiber loopback cablefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en' |
Fiber Optic Loopback Product Name

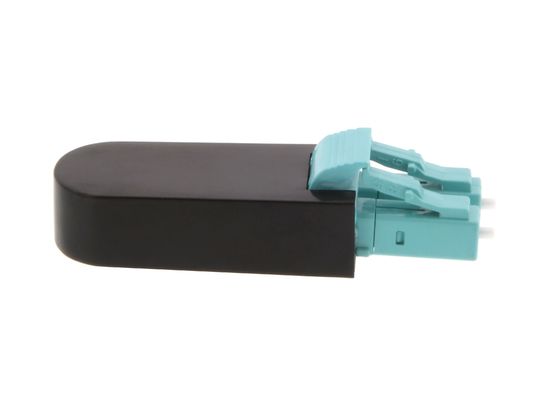

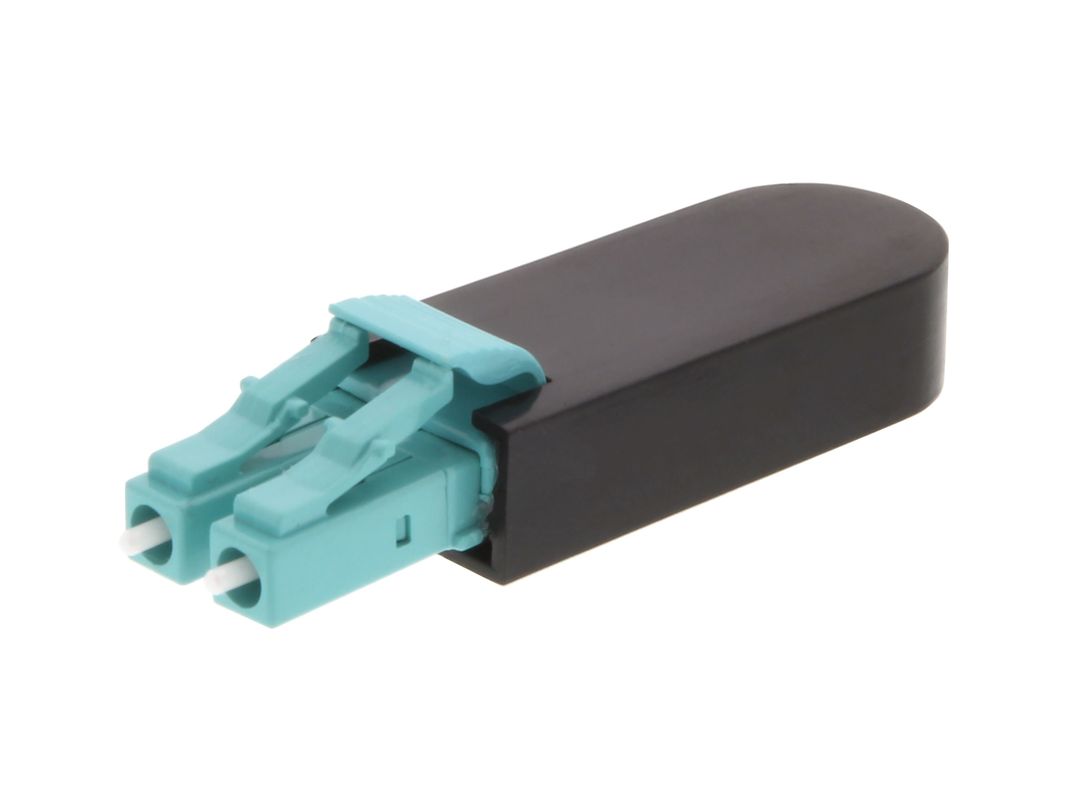

Aqua Duplex LC Fiber Optic Loopback OM3-300 Multimode 50/125um
Fiber Optic Loopback Description
The Fiber Optic Loopback has LC type, SC type. But all types are duplex so that the signal can be returned.
In telecommunication, the function of the fiber loopback is designed to provide a media of return patch for a fiber optic signal. It is typically and widely used for fiber optic testing or network restorations. Also is it a hot sale product now.
Why the Fiber Optic Loopback is so hot and popular because When we need to know whether our fiber optic transceiver is working perfectly, we can use a fiber loopback cable as an economic way to check and ensure it.
Basically, the loopback aids in debugging the physical connection problem of the transceiver by directly routing the laser signal from the transmitter port back to the receiver port.
Since fiber optic transceivers have different interface types and connect different types of cables, it is not that simple to choose the right loopback for our transceiver.
It can be single-mode and multimode types fiber optic loopback, the fiber can be SM 9/125 um, MM 50/125um or MM 62.5/125 um fiber cable, The connector polishing have PC polishing, APC polishing and UPC polishing.
LC Fiber Optic Loopback Plug Features:
Fiber Optic Loopback Application:
R&D
Fiber labs
Telecom testing
FTTX testing
Color | Aqua |
Connector A | LC Male |
Connector B | LC Male |
Manufacturer | New Light |
Fiber Type | Multimode |
Core Size | 50/125 |
Fiber Classification | OM3-300 |
Warranty | Lifetime Warranty |
Length | 2 Inch |
Weight (Lbs) | 0.01 |
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher, so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, but due to the size and weight is not big, most are delivered by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.
We have a very competitive price shipping forward. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.
For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with urgent orders for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /OD M. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.
For big value products, we can't offer it for free, sample charge and freight repaid first after you placed an order, the sample charge will be returned.
11. Q: How can I order?
A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.
2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.
3. When you accept the quotation, we will make a Proforma Invoice with our bank account.
4. We will arrange the production for you after we received the payment.
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.
6. We will try our best to meet your requirements for long-term cooperation.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
